Telemetry

devctl models logs, and now traces, on the OpenTelemetry data model, and can receive OTLP directly. This gives every log a structured shape, correlates a request across the proxy and your services, and lets a coding agent debug the running stack over MCP instead of grepping text. It is local-first: the receiver binds loopback only and is off by default.

The record model

Every log is an OpenTelemetry-style record, not a flat string:

• body — the message; a string, or a structured object when the source emits one.
• attributes — the structured fields, preserved as key/values (never flattened away).
• severityNumber (1–24) + severityText — the level; filtering and coloring use the number.
• traceId / spanId — set when the line carries them, so a log joins its trace.
• resource — service.name (the devctl service) plus process.pid and any OTLP resource attributes.

Two ingestion lanes feed one model:

• stdout / stderr (best-effort). Plain text becomes the body; JSON from pino, bunyan, zap, logrus, structlog, ECS, GELF, or an OTLP-shaped line is mapped into body + attributes + severity + ids. Python str(dict) / repr(mapping) lines ({'key': 'value', ...}) are parsed the same way. A leading timestamp or log prefix before the object is stripped and retried. An unrecognized object is kept as structured data and shown as a key=value summary — never as raw braces.
• OTLP (structured input). The receiver decodes OTLP into devctl's log and span model; stored records are subject to that model and the configured redaction policy.

In the TUI, enter on a log opens the details overlay: the body, an attributes table, the severity, and traceId/spanId. See Logs.

OTLP receiver

An opt-in loopback endpoint that accepts OTLP/HTTP logs and traces, as JSON or protobuf. It is off until you enable it, and rejects any non-loopback bind (both at devctl config validate and at listen time).

telemetry:
  otlp:
    enabled: true                 # default: false
    listen:
      host: 127.0.0.1             # loopback only; 0.0.0.0 / :: are rejected
      port: 4318                  # default 4318 (standard OTLP/HTTP)

It serves POST /v1/logs and POST /v1/traces; other methods and paths are rejected. The body may be Content-Type: application/json (OTLP/JSON, also assumed when the header is missing) or application/x-protobuf (Export*ServiceRequest), optionally with Content-Encoding: gzip (OTEL_EXPORTER_OTLP_COMPRESSION=gzip). A protobuf request gets a protobuf response. Any other content type or encoding gets 415 naming the accepted ones; a body that does not decode gets 400; a body over 4 MiB, before or after decompression, gets 413. Its port must differ from the proxy, token-endpoint, and any gRPC route port — a collision is reported at config-validation time.

When the receiver is enabled, devctl injects the standard exporter variables into every managed host process (not containers, whose loopback is isolated), and never overrides one you set yourself:

OTEL_EXPORTER_OTLP_ENDPOINT   http://127.0.0.1:<port>
OTEL_EXPORTER_OTLP_PROTOCOL   http/json
OTEL_SERVICE_NAME             <service>

So a service instrumented with an OpenTelemetry SDK exports to devctl with no per-service configuration. That includes exporters that send protobuf whatever OTEL_EXPORTER_OTLP_PROTOCOL says, such as Python's opentelemetry-exporter-otlp-proto-http. OTLP over gRPC (port 4317) and /v1/metrics are not served.

Exporting to devctl

OpenTelemetry JS 3.0 (@opentelemetry/sdk-trace 3) constructs its span processor with an options object. Passing the exporter itself exports no spans and raises no error, which looks like devctl stopped receiving traces:

import { SimpleSpanProcessor } from "@opentelemetry/sdk-trace";

new SimpleSpanProcessor({ exporter });

NodeTracerProvider.register() is gone in that release. Install a context manager (the async-hooks one on Node) so a log emitted inside a span keeps the span's trace id. The SDK needs Node 22.15 or later.

Traces and correlation

devctl's own signals are telemetry too. The proxy emits one span per request (method, route, status, duration, identity), and propagates a traceparent plus X-Devctl-Request-ID to the upstream — so a service's own spans and logs share the request's trace. A traceparent on an incoming request is honored; a bare request-id header is not adopted as the trace id, so unrelated requests are never merged into one trace.

Spans are kept in memory only. The trace store holds the newest 10,000 spans, and within that at most telemetry.store_max_bytes of them (64 MiB when unset or 0); the proxy's request spans count toward both. Once it is over either limit the oldest spans leave first, so with large spans (a whole prompt in an attribute or an event) older traces drop out of the explorer sooner. A span is not cut to fit: one larger than the whole budget is kept until the next arrives. Under memory pressure the daemon halves this budget, then quarters it, as it does the log ring. A changed value takes effect on reload.

telemetry:
  store_max_bytes: 134217728      # 128 MiB of spans; default 64 MiB

View a trace three ways:

• TUI — a ◎ marker on a log row means it has a trace; enter (or view trace) opens a full-width waterfall. j/k selects a span; Enter opens that span's logs.
• CLI — devctl logs --trace <id> prints the span tree plus the correlated logs; add --json for JSONL. See CLI.
• Web UI — an opt-in loopback explorer (below) with a waterfall, correlated logs, dependency graph, and rate/latency charts.

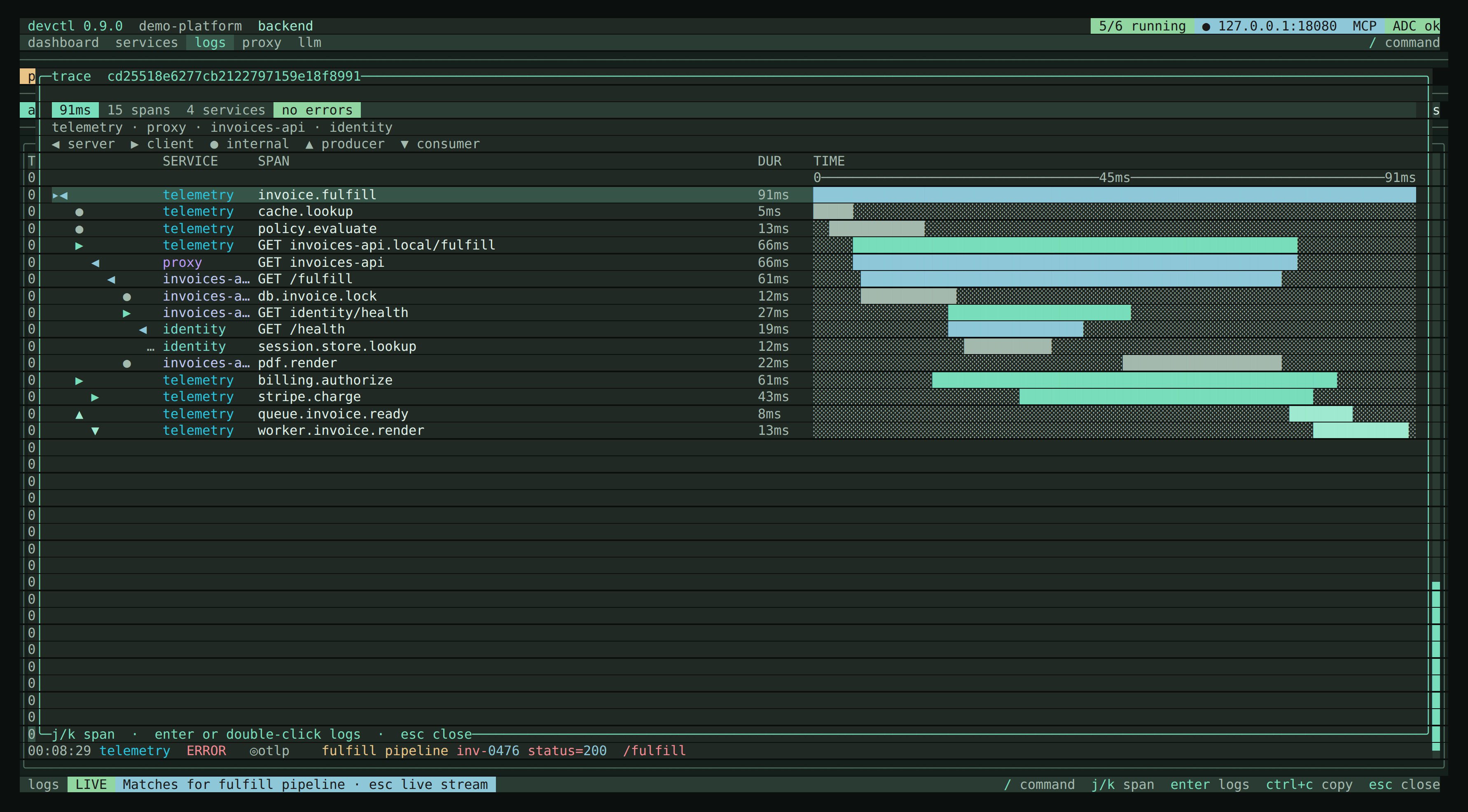

The same trace in the TUI: a ◎ marker on a log row opens a full-width waterfall; j/k selects a span and enter opens that span's logs.

Web UI

The Web console provides service controls, a dependency graph, structured logs, and a trace waterfall for the same supervisor session. It is off by default. Start it and print the access link with:

devctl web start --print-url

Open the printed link to authorize lifecycle controls. The browser keeps that token after the first visit. It stays valid until devctl web rotate, unless regenerate_session_tokens is on (then it remints after 7 days). Plain devctl web start prints only the origin, without the control token. See the web console guide for persistent configuration, screenshots, access details, and troubleshooting.

Redaction

Records and spans are redacted at ingestion, before anything is stored, persisted, or served — the walk recurses into nested body/attributes, span events, and status messages, using the same markers as the rest of devctl (add your own under secrets). MCP output redacts again on top. So OTLP-received or structured stdout data cannot carry a secret into the TUI, CLI, MCP, or the on-disk log files. See Security.

Debugging with an agent (MCP)

The model is what makes "debug, don't grep" possible over MCP:

• get_logs — filter by trace_id, request_id, or an attribute key/value, and receive body + attributes + severity.
• get_trace <trace_id> / trace_request <request_id> — the span tree plus the correlated logs.
• get_requests — the proxy's recent requests (with ids), and recent_errors — the latest error/fatal records.
• get_llm_calls / get_llm_call — LLM traffic from configured sources (LiteLLM spend logs first). Each call includes caller when the originating service is known. See LLM inspector.
• get_traffic_calls / get_traffic_call — HTTP and gRPC hops captured on inspect.enabled proxy routes. List pages omit bodies. See Proxy.

An agent can ask "why did this request fail", resolve the request id to its trace, and read the responsible service's span and logs — all redacted.

Notes

• *UnixNano timestamps are held as JS numbers, so precision is millisecond granular (fine for display, ordering, and durations ≥ ~1 ms); do not rely on exact-nanosecond equality.
• No new runtime dependency: the OTLP/JSON and protobuf decode and the model are built in.
